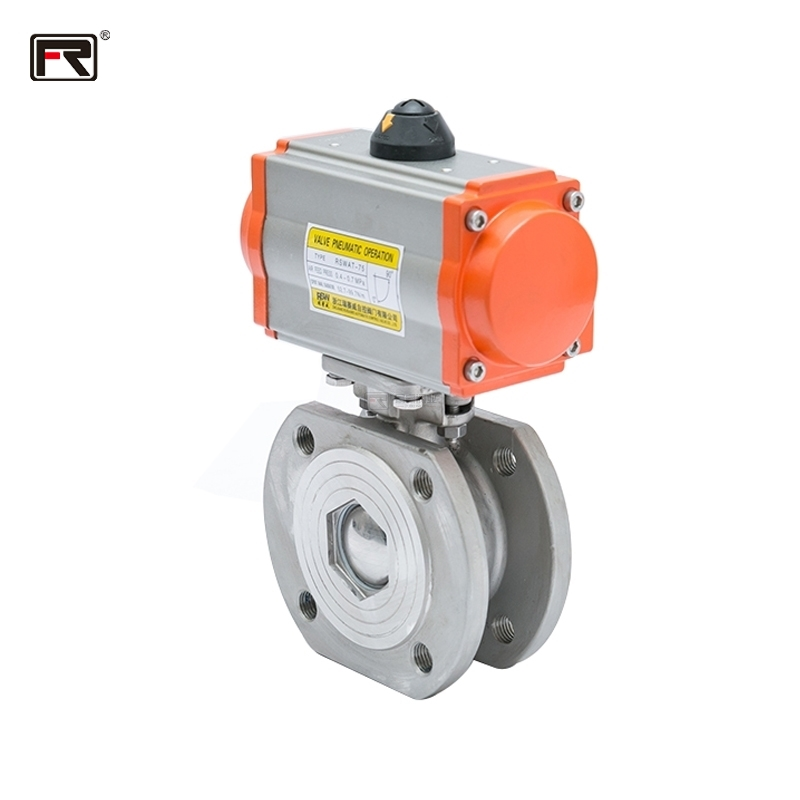

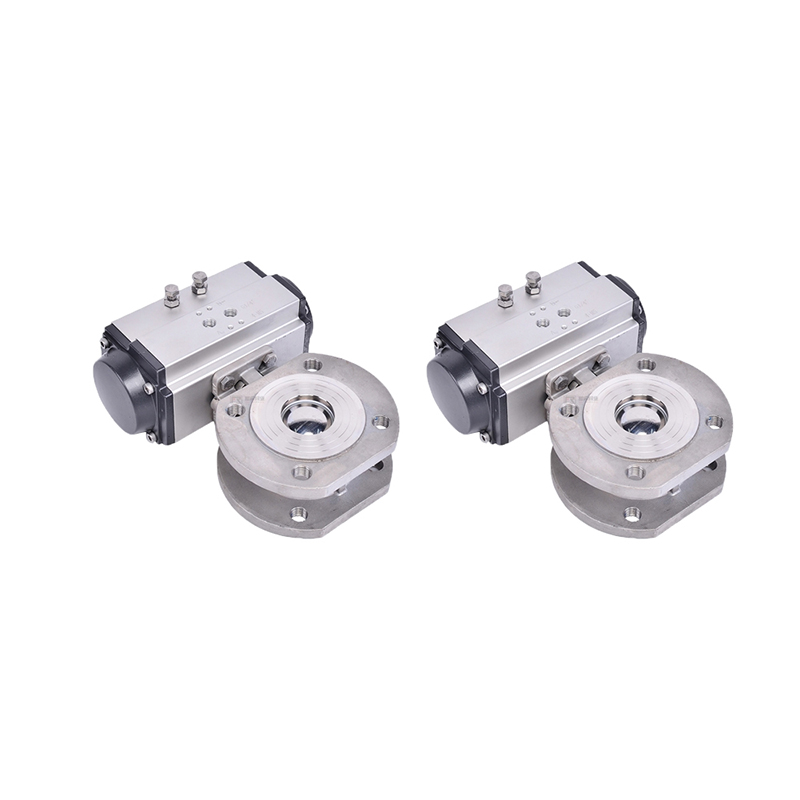

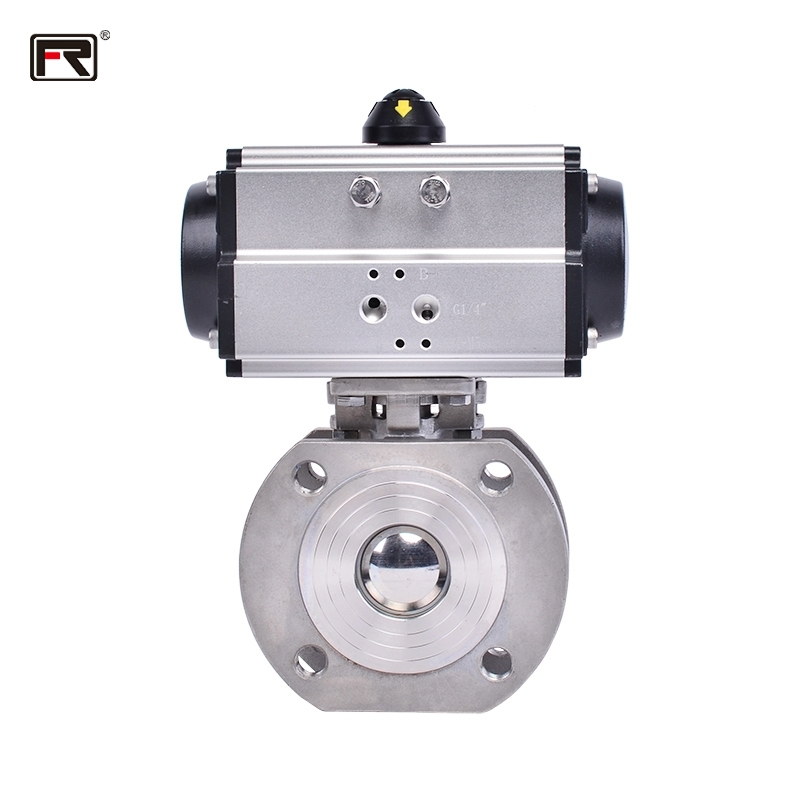

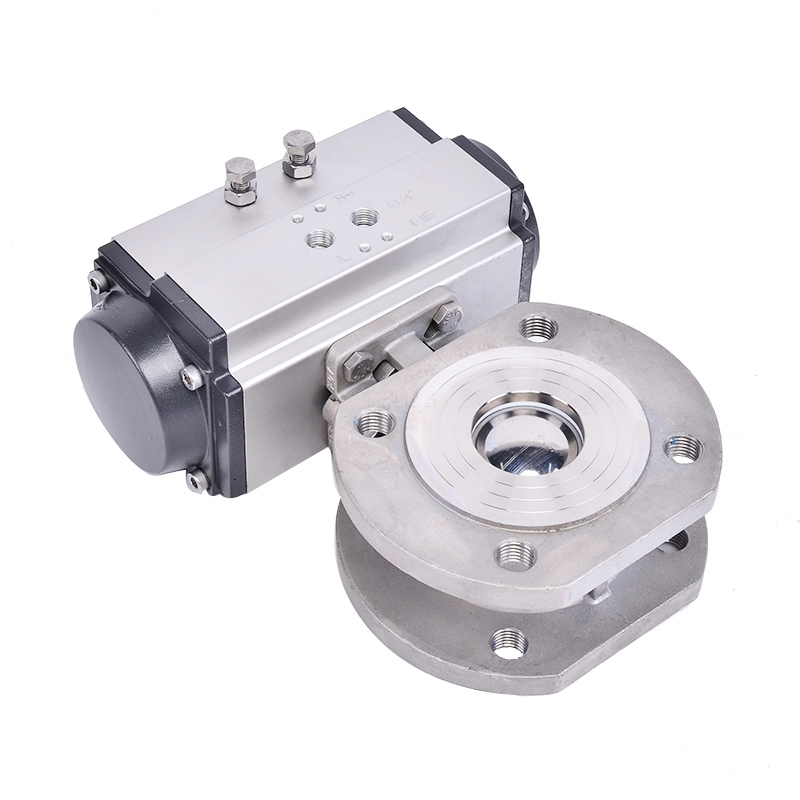

Pneumatic Thin Ball Valve

The pneumatic thin ball valve is a specialized type of valve that combines the functionality of a ball valve with pneumatic actuation for efficient fluid control.
This valve is characterized by its slim and compact design, which makes it suitable for applications where space is at a premium. The thin profile allows for installation in confined or crowded piping systems without sacrificing performance.
The core component of the valve is the ball, which rotates within the valve body to control the flow of the fluid. When the ball is turned to align with the pipe, the valve is fully open, allowing unrestricted flow. Conversely, when the ball is rotated to block the passage, the valve is closed, stopping the flow.
The pneumatic actuation system provides a reliable and powerful means of operating the valve. It typically consists of a pneumatic cylinder or actuator that is controlled by compressed air. The compressed air is directed to the actuator to either extend or retract the piston, which in turn rotates the ball to the desired position.
One of the significant advantages of the pneumatic thin ball valve is its fast response time. The pneumatic actuation enables quick opening and closing of the valve, which is crucial in applications where precise and timely control of the fluid flow is necessary.
